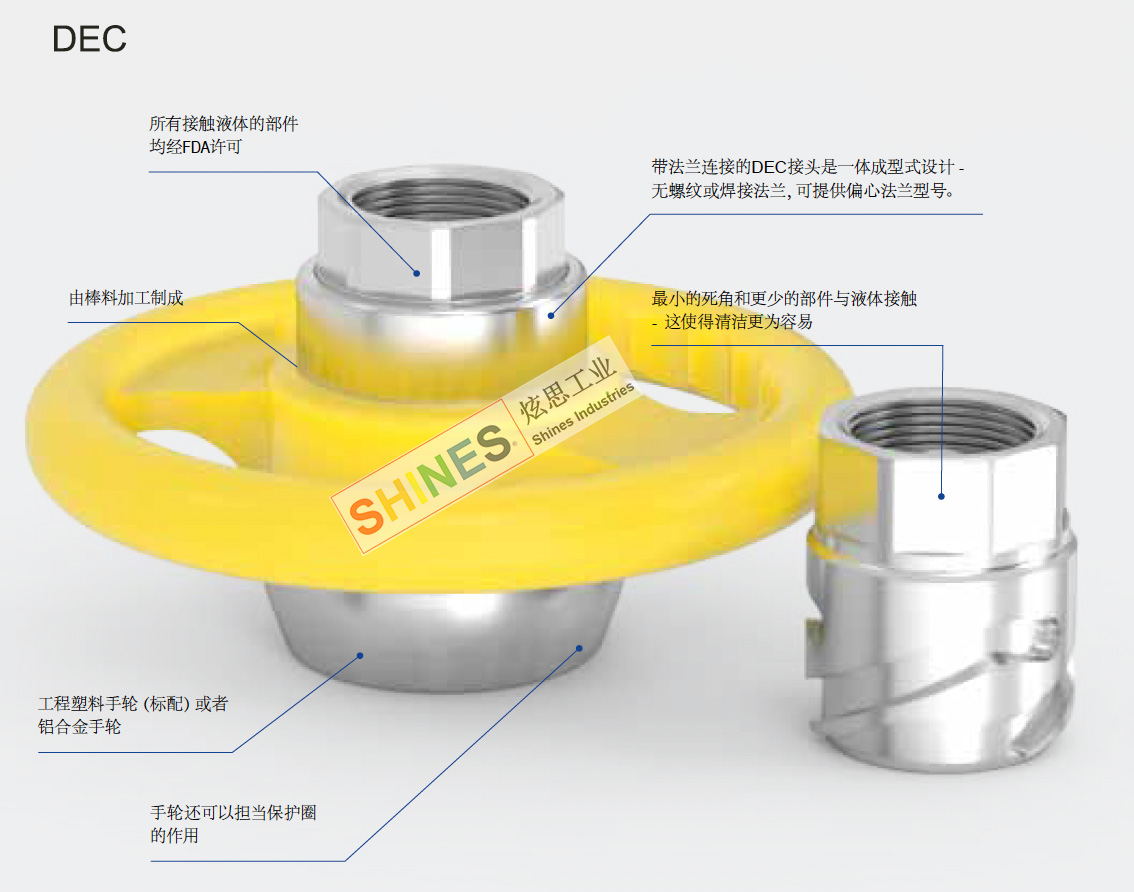

DEC Dry Quick Coupling

As a unique structural form, DEC dry quick couplings are mostly used in the chemical industry. The external cam curve conforms to the ergonomic design, which can realize the pressurized operation of the dry joint of the tanker end. If the dry connector is in a disconnected state, its internal valve always remains in a safe closed state. Once the connection operation is performed, the valve quickly opens the valve with a small pressure loss, and there are no moving parts to interfere with the flow channel, which makes cleaning easier. Rotate the dry joint counterclockwise, and the valves on both sides will close the valve under the action of the elastic potential energy of the spring. Continue to rotate, and the two parts of the connector can be separated and separated very easily.

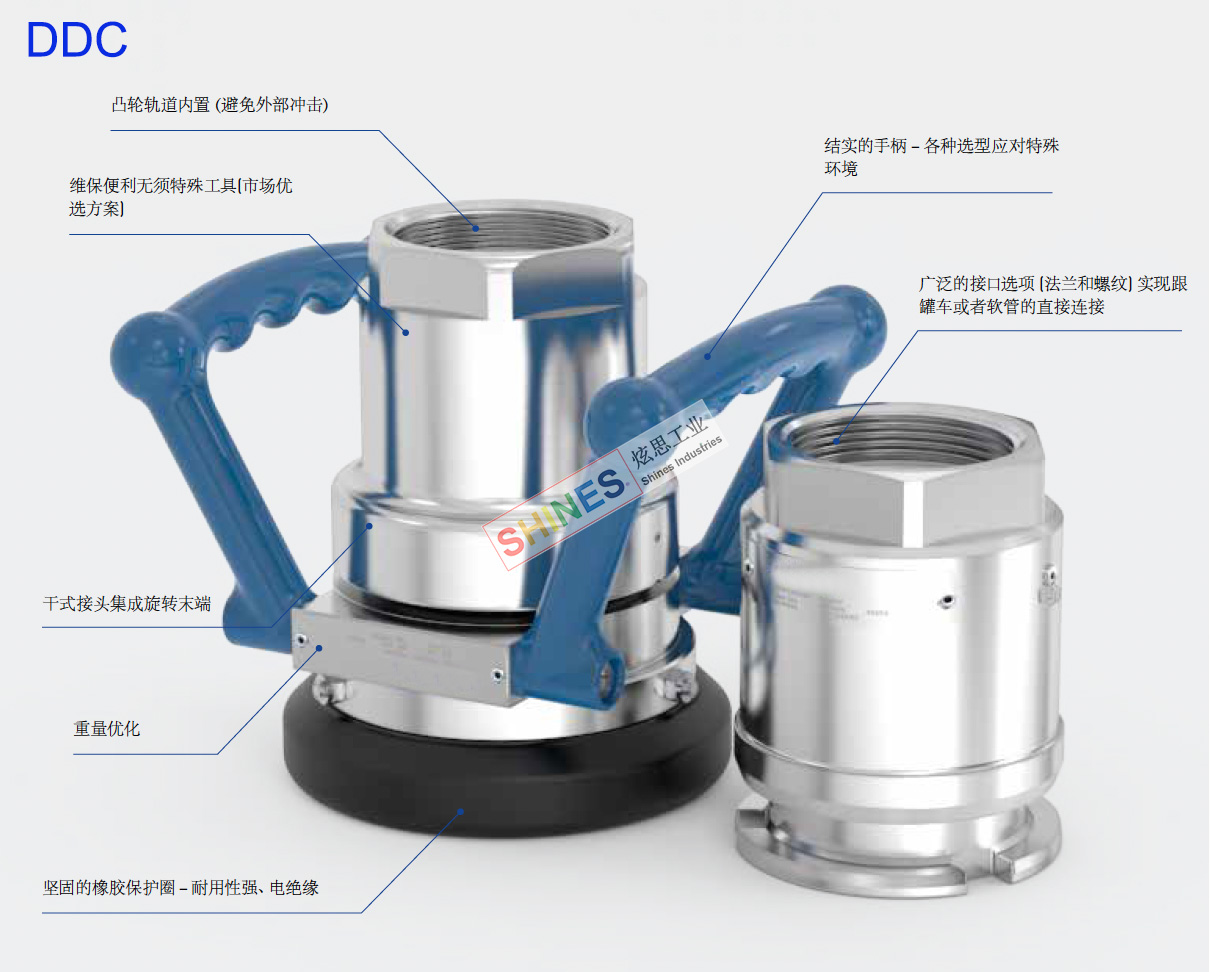

DDC type dry quick coupling

Dry Disconnect Couplings® are designed for safe connection and leak-free handling. We are well aware of the importance of reliability, safety, and elimination of unnecessary leakage and product loss in harsh environments. By establishing standard connections, our connectors can protect other equipment, the environment, and operators. The size covers a size range of 3/4" to 8", and a variety of valve body materials and seals are available, which are suitable for almost all types of applications. The two-way self-sealing design of the dry connector not only ensures a high level of safety, but also ensures a quick connection and disconnection process. Comply with NATO STANAG 3756 manufacturing standards.

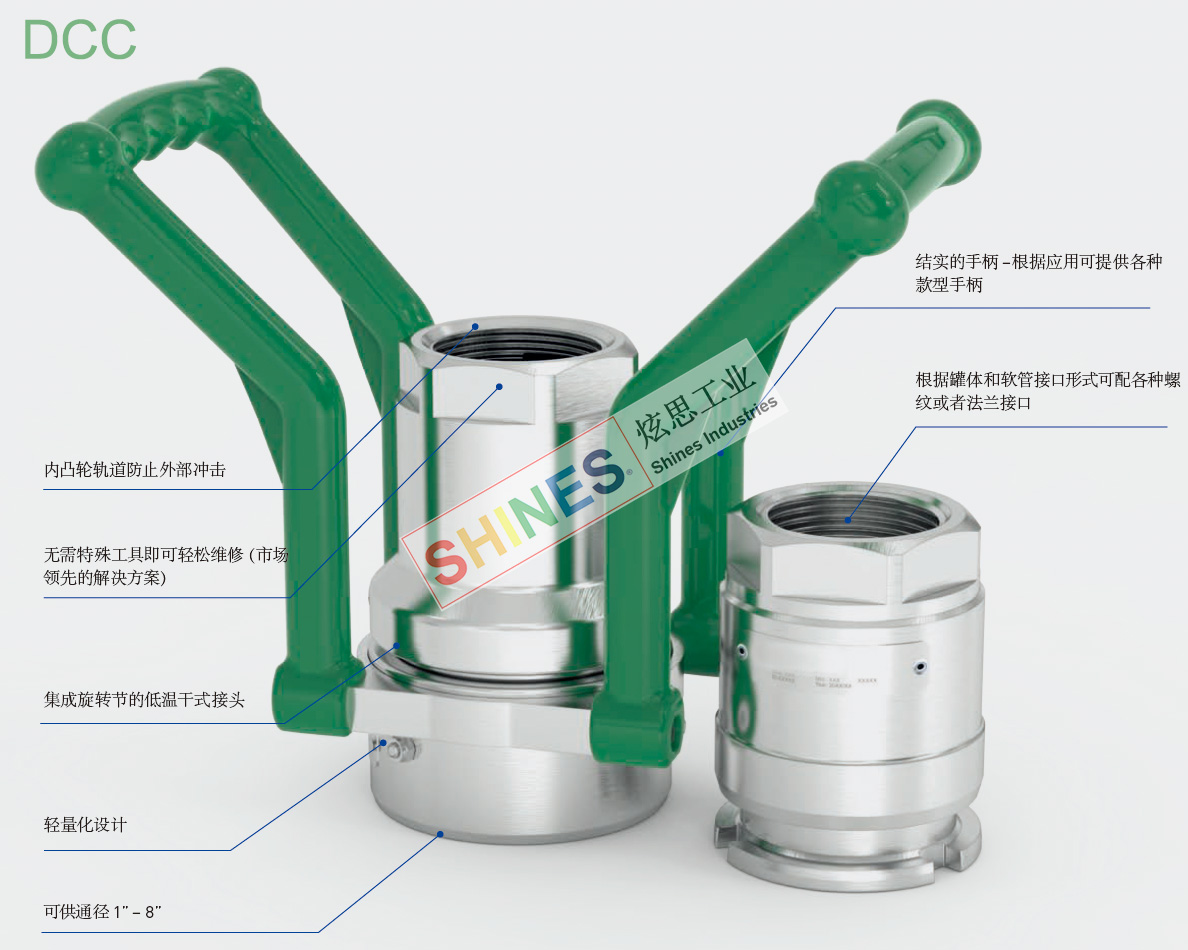

DCC ultra-low temperature dry quick coupling

The low-temperature dry joint (LNG dosing gun) is a breakthrough in the liquefied natural gas industry. Through a simple action-forward push and rotation, the joint realizes docking and rapid liquid passage. Reverse "turn and pull"-the valve is closed, the joint is disconnected, and there is no fluid overflow during the process. DCC low-temperature dry joints are used to prevent any unnecessary fluid overflow, protect personnel and the environment from the influence and injury of dangerous liquids and gases.

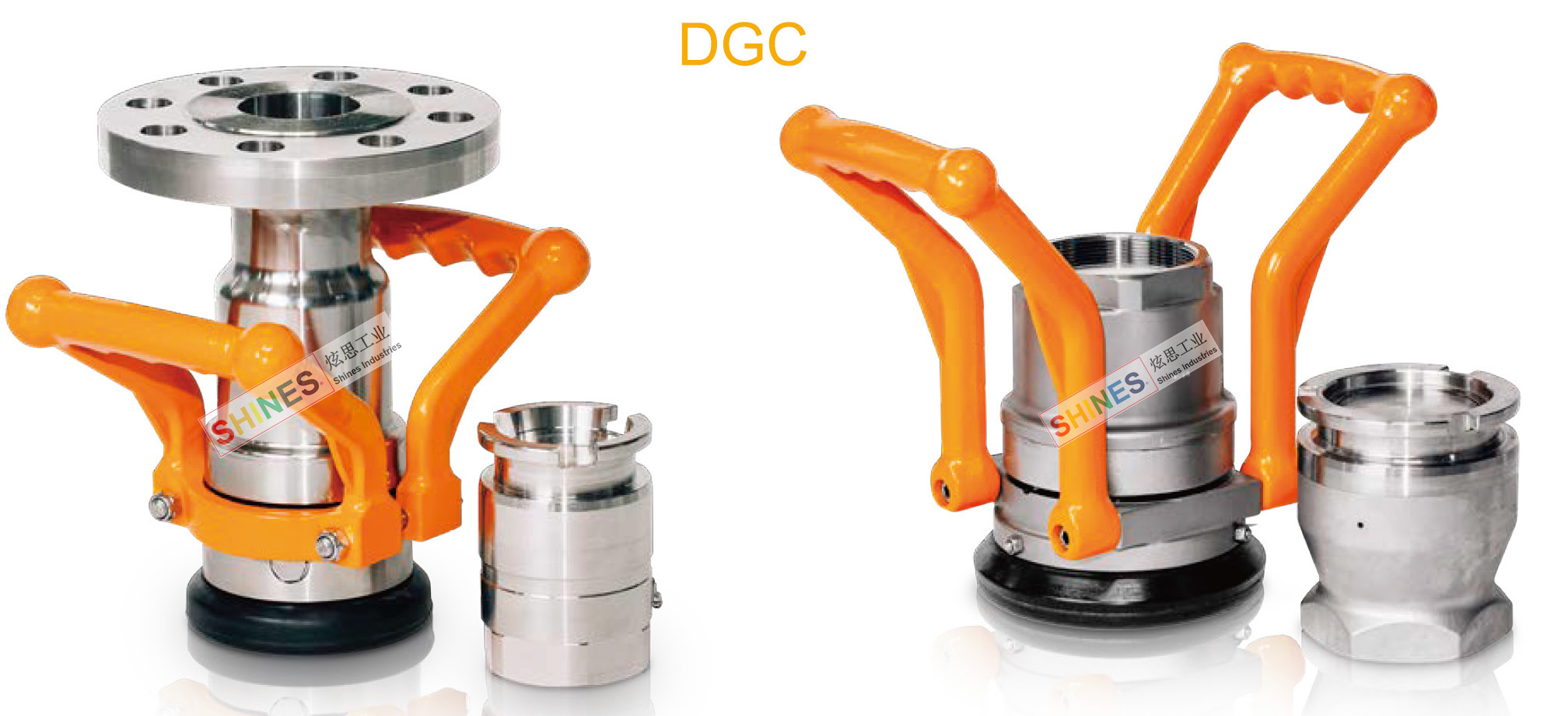

DGC special dry quick coupling for liquefied gas

Special dry joints for liquefied petroleum gas are suitable for connection and disconnection between hoses, crane pipes, loading arms and mobile units such as tank cars and railway tank cars. During the loading and unloading process, the valves at both ends are automatically opened and closed, and no leakage occurs. DGC dry joints are suitable for LPG loading and unloading pipelines in gas and liquid phases, such as propane, butane and similar applications. Greatly reduce the incidence of loading and unloading accidents. Modular design can be applied to different special occasions and provide customized personalized solutions.

DAC aviation special dry quick coupling

Aviation special dry connector DAC is designed for aviation refueling system. All devices can be used for bottom loading and unloading, mainly used in aviation refueling vehicles. DAC is cost-effective in many ways and has many advantages, such as light weight and easy operation.
