The TS2 SCARA robots (Selective Compliance Assembly Robot Arms) share the same structural segments as the 6-axis TX2 robots, offering an identical footprint for high modularity and optimized development times, as well as the same CS9 controller.

They can carry out precise and repetitive tasks, such as loading/unloading, assembly, packaging, palletization, pick and place, handling, sorting, piling, spacing, and more at very high speeds.

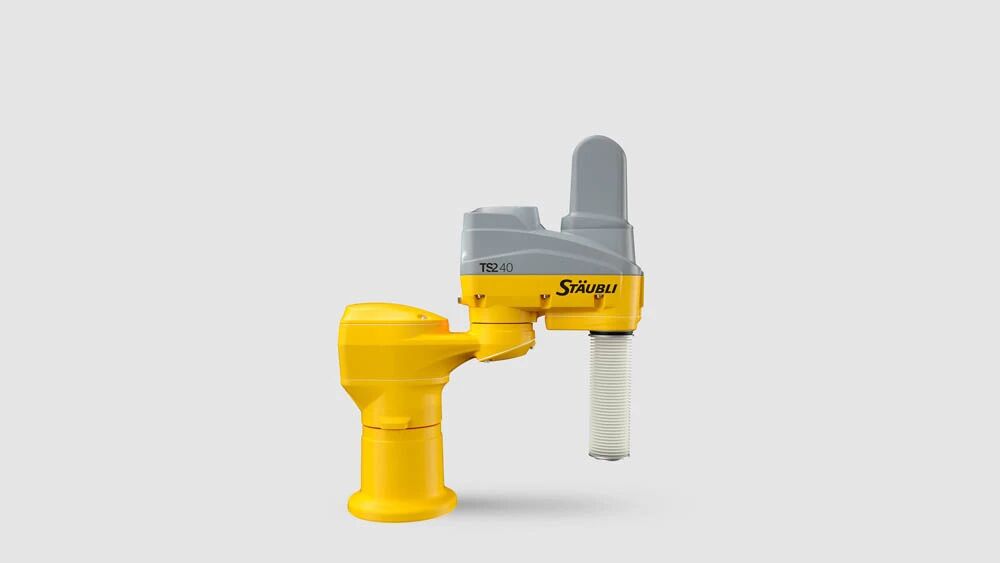

TS2-40

Reach:460 mm

Load capacity:8.4 kg

Repeatability:± 0.01 mm

Stäubli controller:CS9

Number of axis:4

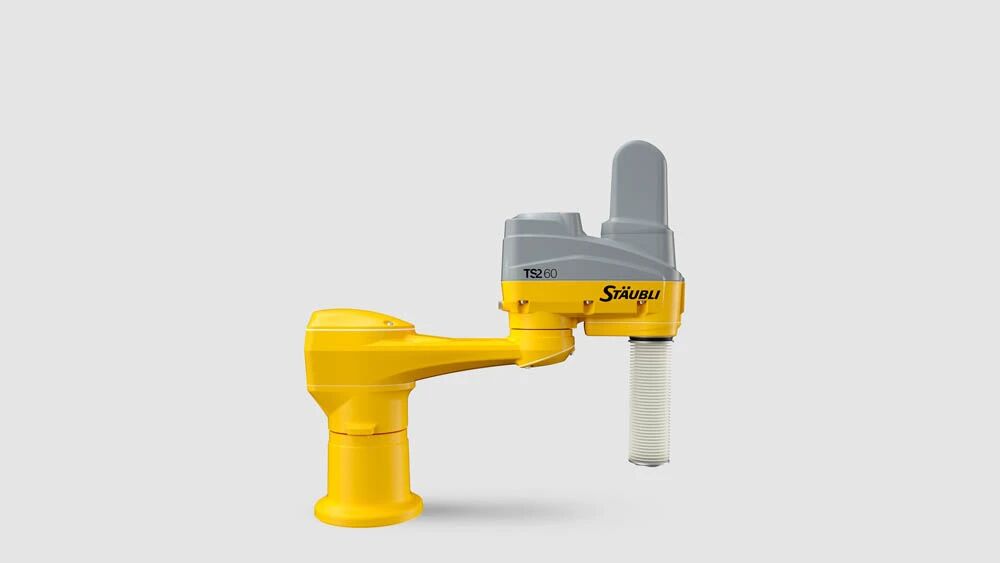

TS2-60

Reach:620 mm

Load capacity:8.4 kg

Repeatability:± 0.01 mm

Stäubli controller:CS9

Number of axis:4

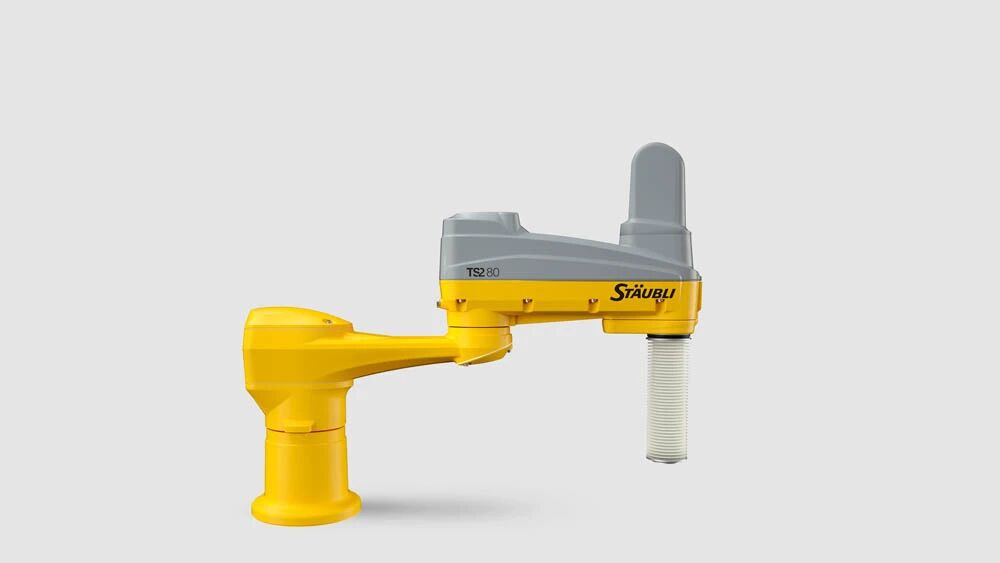

TS2-80

Reach:800 mm

Load capacity:8.4 kg

Repeatability:± 0.015 mm

Stäubli controller:CS9

Number of axis:4

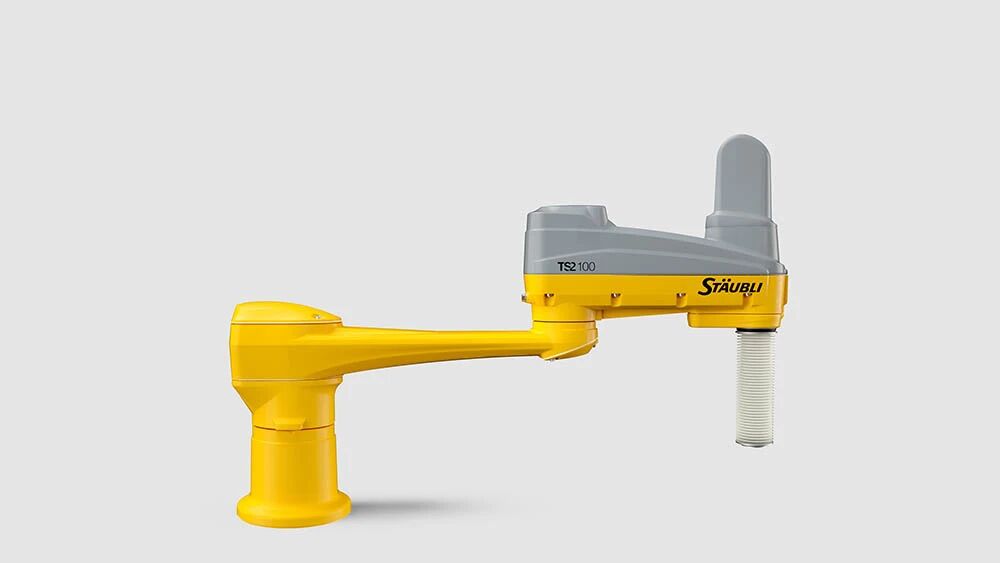

TS2-100

Reach:1000 mm

Load capacity:8.4 kg

Repeatability:± 0.02 mm

Stäubli controller:CS9

Number of axis:4
