The TX2 6-axis articulated robots deliver increased dexterity and flexibility. These robotic arms allow maximum utilization of cell workspace and are ideal for use in handling, machine tending, assembly, testing, packaging, filling, cutting, washing, deburring, polishing and more. Their generic CS9 controller features optional SIL 3/PL e safety functionalities enabling high productivity AND Man-Machine collaboration.

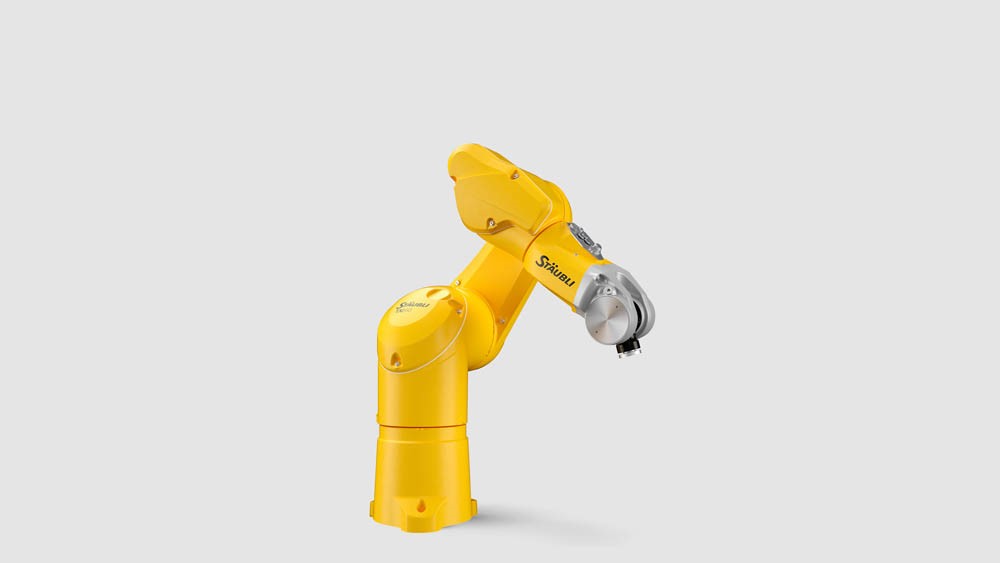

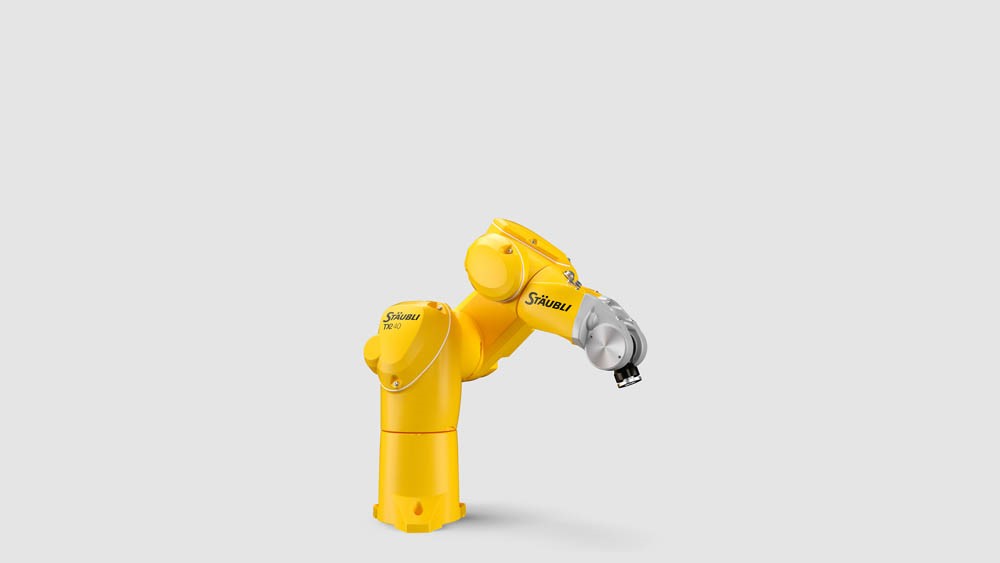

TX2-40

Reach:515 mm

Load capacity:2 kg

Repeatability:± 0.02 mm

Stäubli controller:CS9

Number of axis:6

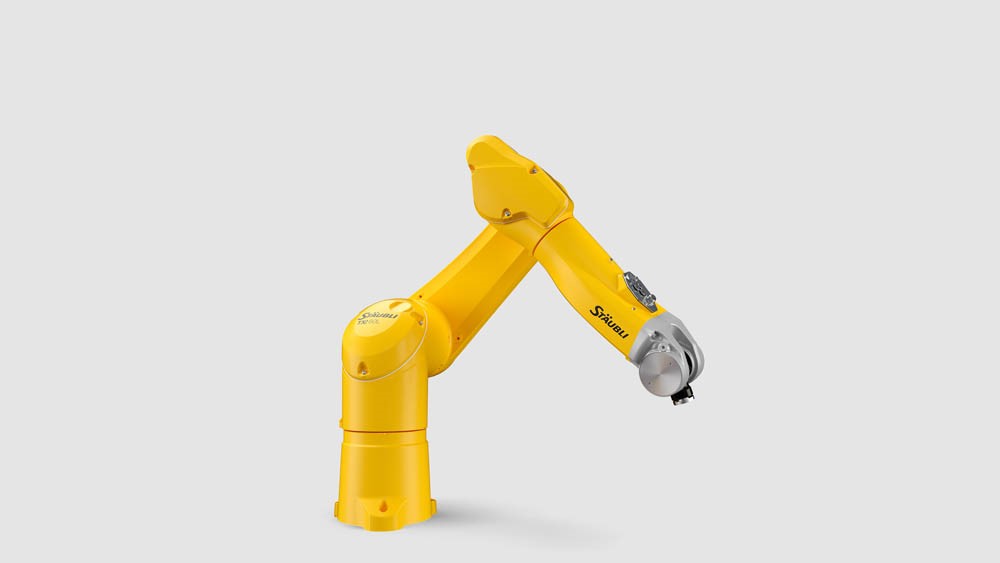

TX2-60

Reach:670 mm

Load capacity:4.5 kg

Repeatability:± 0.02 mm

Stäubli controller:CS9

Number of axis:6

TX2-60L

Reach:920 mm

Load capacity:3.7 kg

Repeatability:± 0.02 mm

Stäubli controller:CS9

Number of axis:6

TX2-90

Reach:1000 mm

Load capacity:14 kg

Repeatability:± 0.02 mm

Stäubli controller:CS9

Number of axis:6

TX2-90L

Reach:1200 mm

Load capacity:12 kg

Repeatability:± 0.02 mm

Stäubli controller:CS9

Number of axis:6

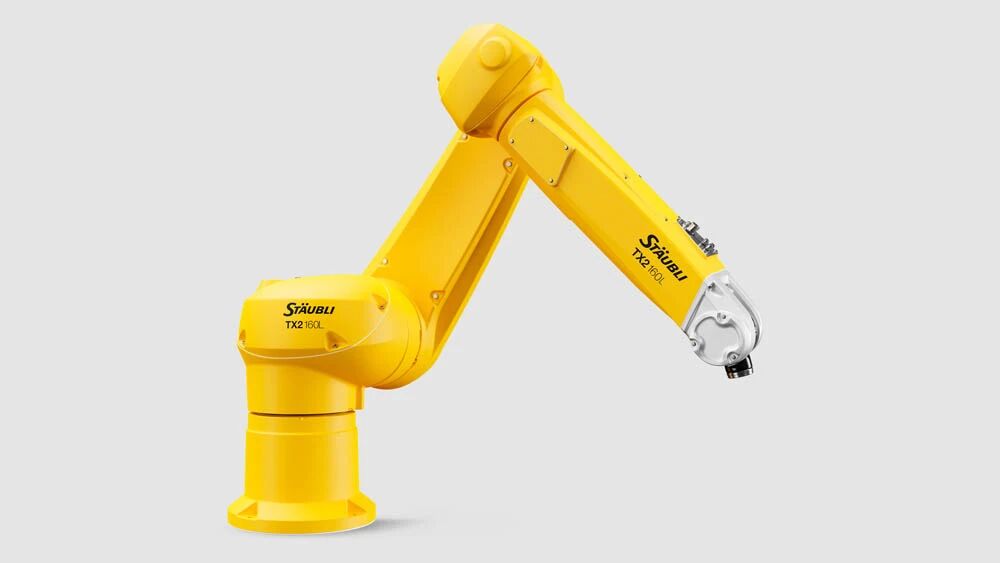

TX2-90XL

Reach:1450 mm

Load capacity:7 kg

Repeatability:± 0.02 mm

Stäubli controller:CS9

Number of axis:6

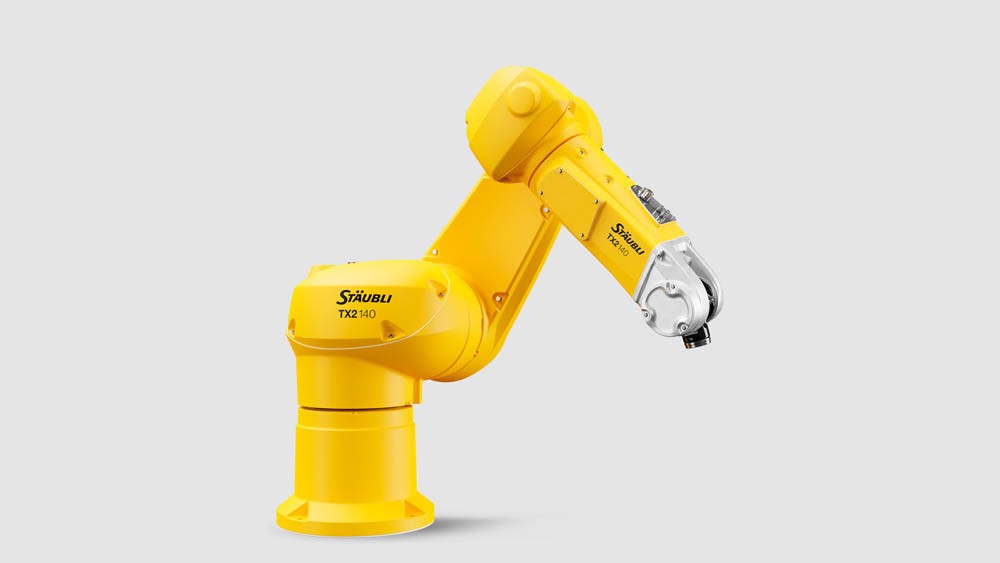

TX2-140

Reach:1510 mm

Load capacity:40 kg

Repeatability:± 0.015 mm

Stäubli controller:CS9 MP

Number of axis:6

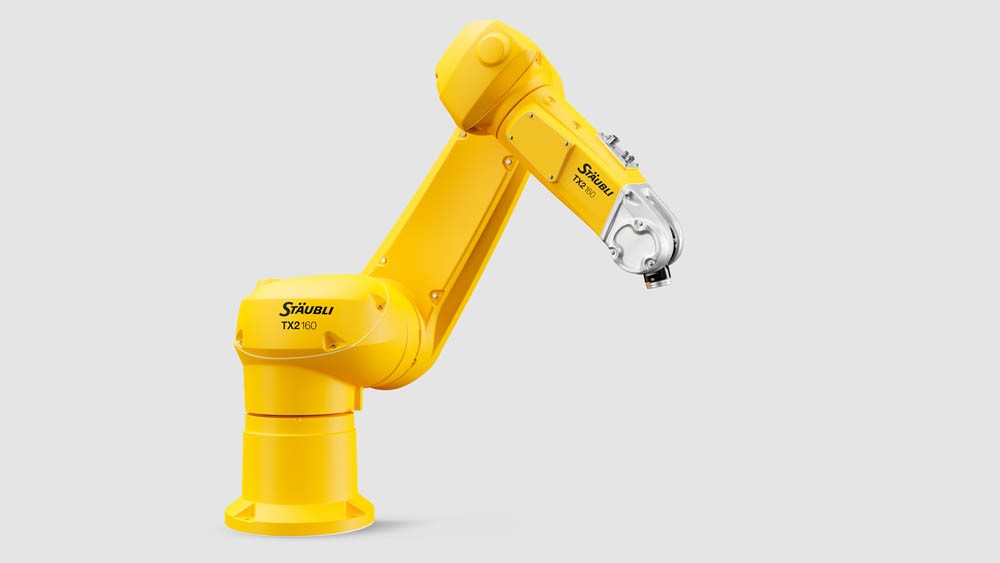

TX2-160

Reach:1710 mm

Load capacity:40 kg

Repeatability:± 0.02 mm

Stäubli controller:CS9 MP

Number of axis:6

TX2-160L

Reach:2010 mm

Load capacity:25 kg

Repeatability:± 0.03 mm

Stäubli controller:CS9 MP

Number of axis:6

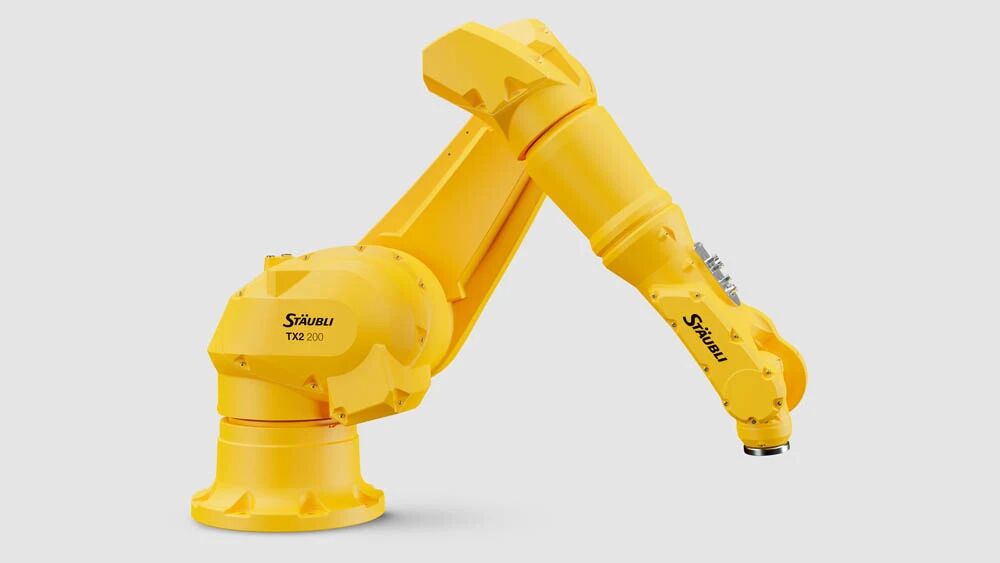

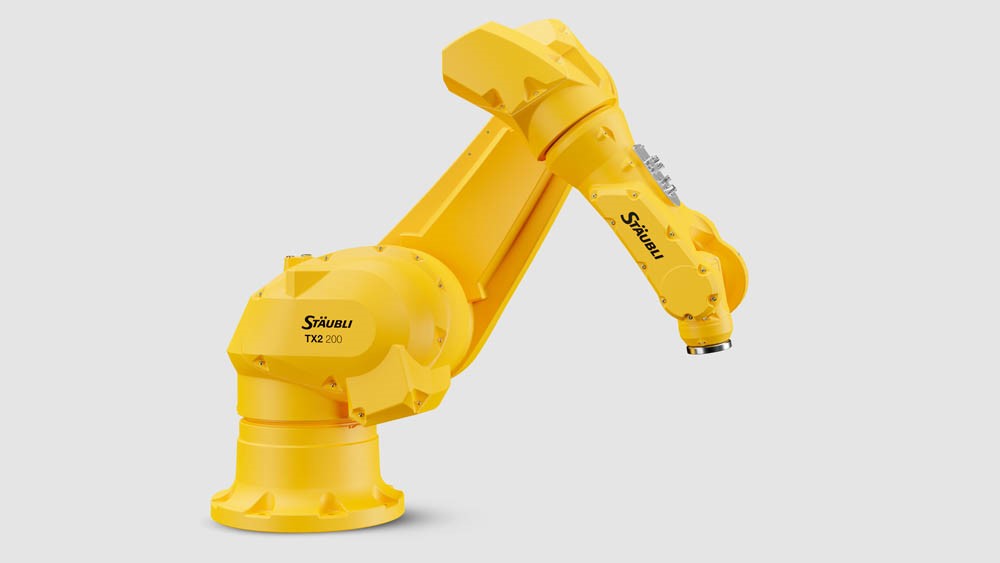

TX2-200

Reach:2209 mm

Load capacity:170 kg

Repeatability:± 0.02 mm

Stäubli controller:CS9 HP

Number of axis:6

TX2-200L

Reach:2609 mm

Load capacity:110 kg

Repeatability:± 0.02 mm

Stäubli controller:CS9 HP

Number of axis:6
