Maximum Design Flow Rates

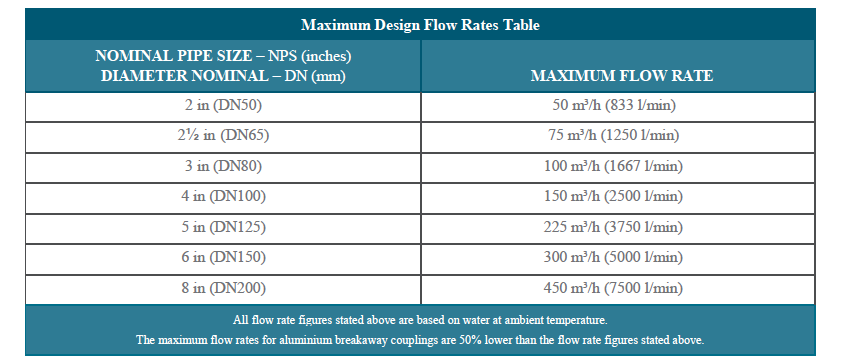

The Product recommended maximum design flow rates, permitted at activation, are listed in the Maximum Design Flow Rates Table below – applicable for all stainless steel, carbon steel and high nickel alloy breakaway couplings.

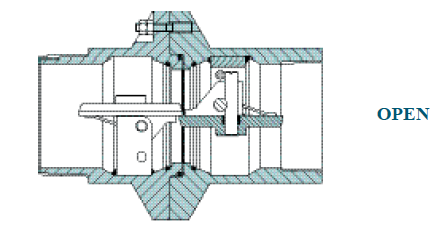

1. OPEN: the two flaps interlock, offering the minimum head-loss until the breakaway coupling separates.

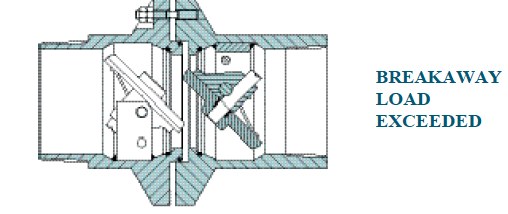

2. BREAKAWAY LOAD EXCEEDED: the breakstuds elongate and the flaps are released and rotate through a controlled arc.

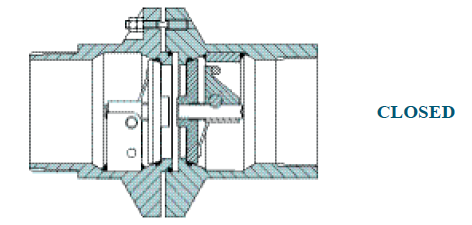

3. CLOSED: the flaps have moved through 90 degrees, where they snap onto their seats prior to the breakaway coupling fully separating.

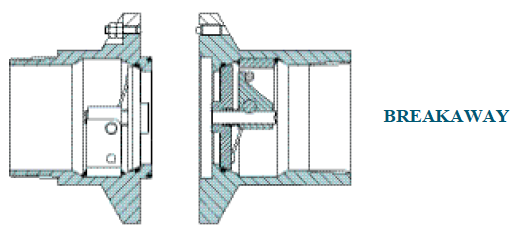

4. BREAKAWAY: with 100% shut-off achieved, the two halves of the breakaway coupling then separate completely.

Typical applications

Bunkering, Refuelling, Railcar, Road Tanker and Loading Arm systems involved in the transfer of media.

Typical media applications

l LPG

l Ethanols

l Propane

l Bitumen

l Hydrochloric Acids

l Chlorine

l Diesel

l Fuel oil

l Ammonia

l Sulphuric Acid

l Jet Fuel
